9600 SERIES

The 9600 Series OEM/Non-Cassette Night Cover for new equipment and remodels is the preferred night cover of thousands worldwide

Item #’s
96104-01 (4ft) Buy NowVolume Pricing 96106-01 (6ft) Buy NowVolume Pricing 96108-01 (8ft) Buy NowVolume Pricing




The Econofrost 9600 series is easy to install, easy to use, and is the ideal night cover to specify in new equipment purchases. The 9600 Series can also be easily retrofit into select existing equipment.

Essentially, the non-cassette version of the 9000 Series, the 9600 Series utilizes the same woven aluminum foil laminated to a polyethersulfone backing for strength, hygiene and flame spread resistance. The laminated fabric is sealed with a polyethylene clear coat that exceeds UL94HB requirements, prevents accumulation of dirt, dust and stains, and is easily cleaned with a mild detergent for optimum hygiene. The fabric is perforated to exacting standards to prevent formation of condensation, and is laser cut or reinforced on outer edges with a fiber material to prevent excessive wear.

The retraction system is a spring/brake assembly made using food-safe oiled steel for long life and anti-corrosion, mounted to a steel shaft that connects the patented braking system. The spring/brake assembly is engineered to provide smooth controlled retraction every time, and is tested and certified by Econofrost factory engineers for 7,000 retractions/rewinds or 20 years of use.


Specifications

Fabric Type : Perforated Woven Aluminum laminated to Polyethersulfone and Sealed with Polyethylene. Edges are Laser Sealed.

Safety : Anti-Bacterial material exceeding UL94HB Fire Retardent Standard

Fabric Length: 78in

Handle : Clip-on Slim-Line Handle Secures with: 2 x clip-on magnets on the bottom rail profile

Housing : N/A

Mounting System : Metal spring mounting clips

Braking System : Smooth, Controlled Retraction using Hydraulic Spring/Brake Assembly. Easy to Adjust

Bottom Rail Profile : Recyclable Heavy Gauge Extruded Aluminum (30mm)

Optional : (1) Hook (for handle) in lieu of magnets, (2) Clip-on Hooks for horizontal coffin cases


Sizes and Applications

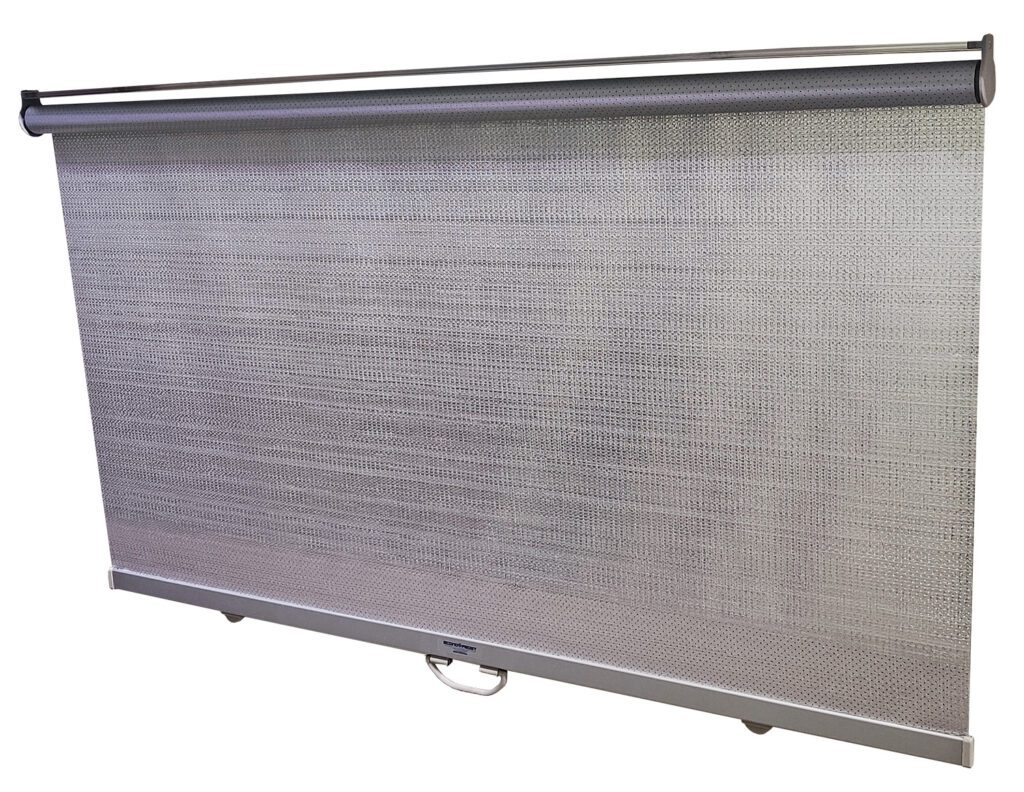

Image of Econofrost 9600 Series night cover

Available in 4ft, 6ft and 8ft wide models with a vertical fabric length of 78 inches, the 9600 series easily attaches inside the canopy of upright multi-deck refrigerated display cases.

Ideal for produce, meat, dairy, deli, beverage and floral displays, the 9600 series will effectively help you meet your energy savings and shrink management objectives.


Installation Instructions


9600 Series Installation

Installing the 9600 Series is relatively easy. Once you’ve installed one or two cassettes, you quickly can finish an installation of a cassette in about a couple of minutes.

If you ever have any questions regarding the installation of the ECONOFROST brand of night covers,please give us a call (toll free in North America) at 1-800-519-1222 or at (250) 743-1222.


Customer photos

Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case
Covered Dairy Case

Contact us today to order the 9600 Series
